2200W AC Gear Reducer Motor for Vertical & Horizontal Installation
The 2200W AC Gear Reducer Motor is designed for reliable power transmission in industrial machinery, automation systems, conveying equipment, and production applications. Featuring a standard 40mm output shaft, this model is available in both vertical and horizontal configurations, providing flexible installation options for different machine structures and transmission layouts.
Supporting 3-phase 220V and 3-phase 380V configurations, the motor can be matched with different industrial electrical systems. Its integrated motor and gear reduction structure provides smooth mechanical output for machinery requiring stable rotational movement and dependable power transmission.
2200W AC Gear Reducer Motor Specifications
| Parameter | Specification |
|---|---|
| Product Type | AC Gear Reducer Motor |
| Output Power | 2200W |
| Standard Shaft Diameter | 40 mm |
| Mounting Type | Vertical / Horizontal |
| Voltage | 3-Phase 220V / 3-Phase 380V |
Vertical and Horizontal Mounting Options

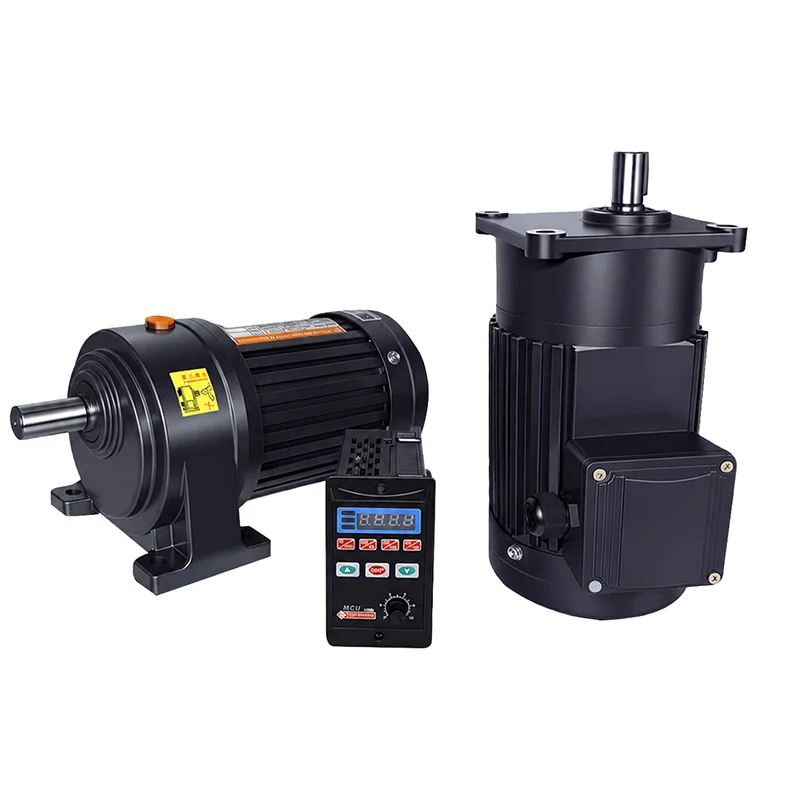

The 2200W AC Gear Reducer Motor is available in both vertical and horizontal configurations, allowing equipment manufacturers to select a mounting arrangement according to machinery design and output direction.
The horizontal configuration provides a conventional shaft orientation for conveyor equipment, processing machinery, and other systems where horizontal power transmission is required. The vertical configuration provides an alternative for machinery where the installation space or transmission arrangement requires a vertical output.
This flexibility makes the 2200W model suitable for OEM machinery projects with different mechanical layouts.
Detailed dimensional information is available for both versions so that engineers and purchasing teams can check overall dimensions, mounting positions, shaft location, and available installation space before ordering.
40mm Standard Output Shaft
This model features a standard 40mm output shaft, providing a clearly defined mechanical interface for connection with compatible machinery and transmission components.
When selecting the motor, the 40mm shaft diameter should be checked together with the installation dimensions and mechanical structure of the equipment. Output speed, reduction ratio, operating load, mounting direction, and working conditions should also be considered before confirming the final configuration.
The corresponding dimensional drawing provides measurements for both vertical and horizontal installations, helping machinery manufacturers verify compatibility during equipment design.
Dimension Figure
Durable Gear Transmission Structure
The 2200W AC Gear Reducer Motor combines an AC motor with an integrated reduction mechanism to provide stable and smooth mechanical transmission.
The internal gears use alloy steel material with heat treatment to improve wear resistance and durability. Precision gear engagement supports consistent power transfer between the motor and output shaft, helping the transmission operate smoothly in industrial machinery.
The motor also uses a copper coil design to support stable operation. Together, the motor and reducer form a practical geared drive solution for equipment requiring reliable mechanical power transmission.
Typical Industrial Applications
With 2200W output power, a 40mm shaft, and two installation configurations, this AC gear reducer motor can be used in a variety of industrial equipment, including:
- Conveyor and conveying systems
- Industrial automation machinery
- Packaging and processing equipment
- Material handling systems
- Manufacturing equipment
- Production line machinery
- General industrial transmission systems
The actual application should be evaluated according to equipment requirements. Required output speed, reduction ratio, load conditions, operating environment, and installation direction should be confirmed before final motor selection.
3-Phase 220V and 380V Power Options
The motor supports both 3-phase 220V and 3-phase 380V electrical configurations, allowing customers to select a version that matches their industrial power supply.
For OEM equipment intended for different markets, the required electrical configuration should be confirmed according to the destination power system. Customers should specify the required voltage when requesting product information or a quotation.
Flexible Drive Solution for Industrial Machinery
The 2200W AC Gear Reducer Motor combines a 40mm standard shaft with vertical and horizontal installation options, providing machinery manufacturers with greater flexibility when designing industrial drive systems.
Its geared transmission structure is suitable for equipment requiring smooth and stable mechanical output. The availability of different mounting orientations also makes it easier to integrate the motor where equipment space or transmission direction is restricted.
For machinery builders, automation companies, OEM manufacturers, and industrial buyers, the 2200W model provides a practical solution for a wide range of mechanical transmission requirements.
When requesting a quotation, customers can provide their voltage, required mounting direction, output speed, reduction ratio, quantity, and application information to help confirm the appropriate configuration.
Where the 2200W Model Sits in the Range
With a 40mm output shaft, the 2200W model is the second-largest rating in our medium gear reducer motors series, below the 3700W (50mm) model and above the 1500W (32mm) model. Light and medium machinery is served by the small AC gear reducer motors range, and the right angle gear reducer motors cover compact 90-degree layouts.
If the load is heavier than this rating allows, move up to the 3700W AC gear reducer motor; if the duty cycle is lighter, the 1500W AC gear reducer motor may be sufficient. Share your torque and speed requirements through the contact form for a confirmed selection.
Quick Reference: What Is Fixed and What Is Configurable
| Output power | 2200W (position 4 of 5 in the 400W–3700W series) |
| Standard output shaft | 40 mm |
| Mounting arrangement | Vertical or horizontal, selected at order |
| Supply | 3-phase 220V or 3-phase 380V |
| Reduction ratio | Configured to order — confirm the output speed you need when requesting a quote |
| Output speed | Follows the selected ratio; state the target rpm in your inquiry |
Sizing note: one step down is the 1500W AC gear reducer motor, and one step up is the 3700W AC gear reducer motor. The full progression is listed on the medium gear reducer motors page.
Running This Rating in Real Machines
The 2200W rating is normally specified for:
- Heavy conveyors and bulk handling — loaded starts and continuous high-throughput runs. See our selection guide.
- Material handling equipment — transfer, lifting and positioning under heavy load. See our selection guide.
- Manufacturing equipment — main drives on production machinery. See our selection guide.
- Processing equipment — mixers, crushers and forming machines. See our selection guide.
If your machine is an OEM build rather than a replacement, the gearmotor selection guide for OEM buyers covers quotations, life testing and lead time; if the drive has to survive heat or continuous duty, read the notes on service factor, backlash and lubrication first.
What to Include in Your Inquiry
To get a confirmed quotation rather than an indicative price, send these five points:
- The load the machine moves, or the output torque in N·m if it is already known
- Required output speed in rpm, and whether it is fixed or variable
- Supply voltage and phase — 3-phase 220V or 3-phase 380V
- Mounting orientation: vertical or horizontal, plus any depth limit under the frame
- Shaft detail — whether the 40 mm standard shaft suits your pulley, sprocket or coupling, or a drawing is needed
Request a quote for the 2200W AC gear reducer motor → — include the five points above and we will reply with a dimensional check and price. A photo of the existing nameplate is enough if the original specifications are unknown.
FAQ
What is the shaft diameter of the 2200W AC Gear Reducer Motor?
The 2200W AC Gear Reducer Motor features a standard 40mm output shaft. The corresponding dimension drawing can be used to check shaft dimensions and installation compatibility.
Is the 2200W gear reducer motor available in vertical and horizontal configurations?
Yes. Both vertical and horizontal configurations are available, allowing customers to select the appropriate installation style according to their equipment layout.
What voltage does the 2200W AC Gear Reducer Motor support?
The motor supports 3-phase 220V and 3-phase 380V configurations. The required voltage should be confirmed before ordering.
What equipment can use the 2200W AC Gear Reducer Motor?
Typical applications include conveyor systems, automation machinery, processing equipment, material handling systems, manufacturing machinery, and other industrial transmission equipment.
How do I select the correct motor configuration?
Consider the required output power, shaft diameter, output speed, reduction ratio, load conditions, voltage, mounting orientation, and installation dimensions. For OEM projects, these requirements can be provided when requesting a quotation.
