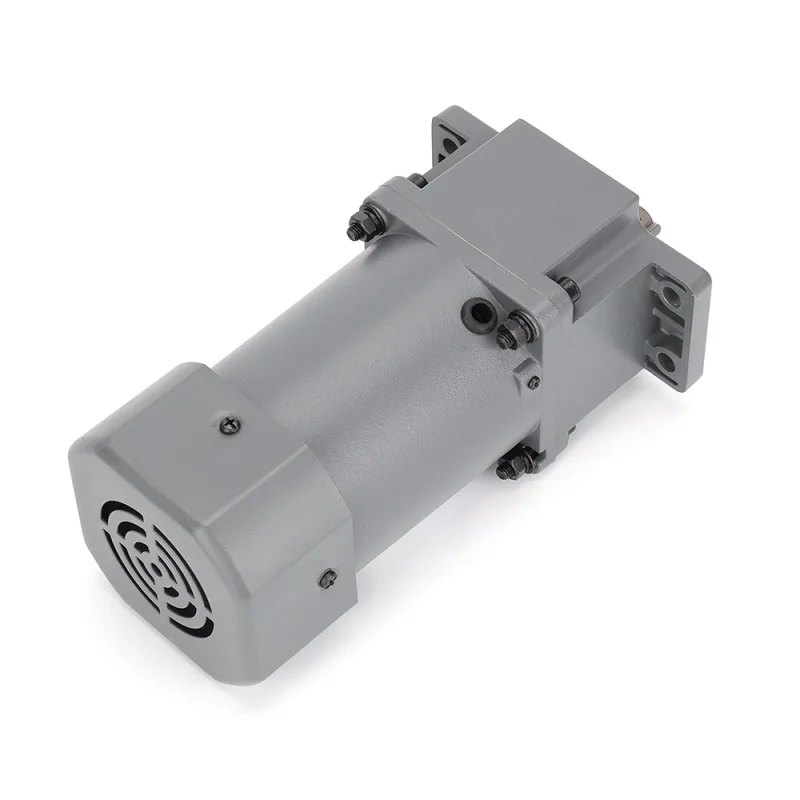

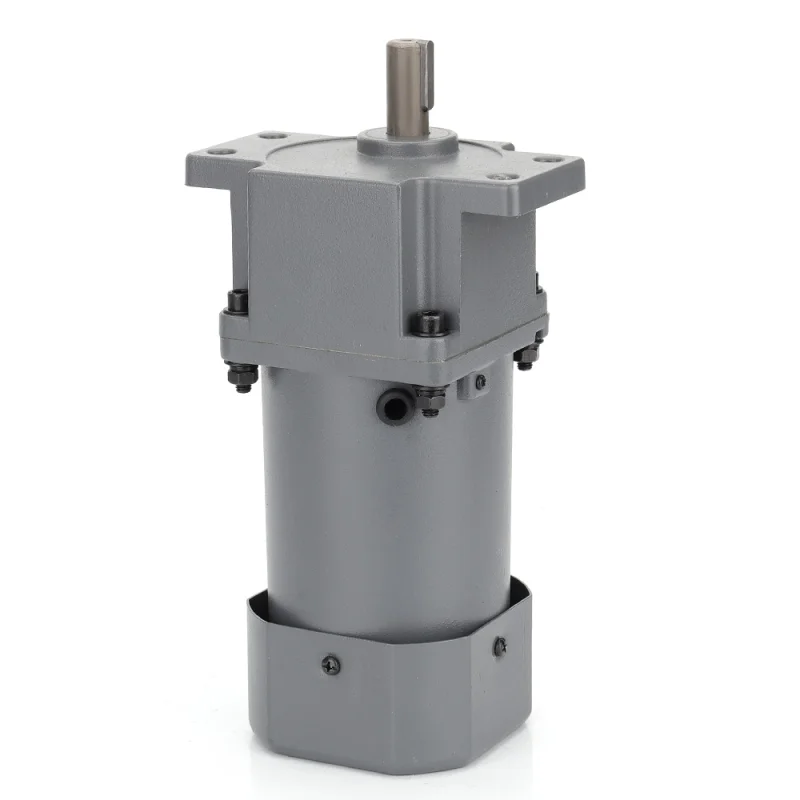

Small AC Gear Reducer Motor 90W
The 5RK series AC gear motor (90–120W) features a robust 90mm frame and delivers high torque output for demanding industrial applications. Designed for stability and durability, it ensures reliable performance under continuous operation. With support for single-phase and three-phase power systems, this motor is ideal for heavy-duty automation, conveyor systems, and mechanical transmission equipment.
- Output Power: 90W / 120W
- Voltage: 110V / 220V / 380V (Single-phase & Three-phase options)
- Rated Speed: 1350 – 1550 r/min
- Rated Torque: 544 – 910 mN·m
List of motor characteristics
5RK AC deceleration motor (90 – 120W) (90mm)
| Motor Model | Specs | Output Power W | Voltage V | Frequency Hz | Current A | Starting Torque | Rated Torque | Rated Revolution r/min | Capacity/Ve μF/VAC | ||
| JWD Types | mN.m | gf.cm | mN.m | gf.cm | |||||||
| 5RK90GU-CF | Reversible 30min | 90 | 1-phase 220V | 50 | 0.68 | 837 | 8370 | 670 | 6700 | 1350 | 6/450 |
| 5RK90A-CF | 60 | 0.72 | 692 | 6920 | 544 | 5440 | 1550 | 6/450 | |||
| 5RK90GU-AF | Reversible 30min | 90 | 1-phase 110V | 50 | 1.38 | 837 | 8370 | 670 | 6700 | 1350 | 24/250 |
| 5RK90A-AF | 60 | 1.5 | 692 | 6920 | 544 | 5440 | 1550 | 24/250 | |||
| 5RK90GU-UF | —— | 90 | 3-phase 380V | 50 | 0.32 | 837 | 8370 | 670 | 6700 | 1350 | —— |
| 5RK90A-UF | 60 | 0.3 | 692 | 6920 | 544 | 5440 | 1550 | —— | |||
| 5RK120GU-CF | Reversible 30min | 120 | 1-phase 220V | 50 | 0.95 | 1137 | 11370 | 910 | 9100 | 1350 | 8/450 |
| 5RK120A-CF | 60 | 1 | 955 | 9550 | 764 | 7640 | 1500 | 8/450 | |||
| 5RK120GU-AF | Reversible 30min | 120 | 1-phase 110V | 50 | 1.90 | 1137 | 11370 | 910 | 9100 | 1350 | 30/250 |
| 5RK120A-AF | 60 | 2.1 | 955 | 9550 | 764 | 7640 | 1500 | 30/250 | |||
| 5RK120GU-UF | —— | 120 | 3-phase 380V | 50 | 0.34 | 1137 | 11370 | 910 | 9100 | 1350 | —— |
| 5RK120A-UF | 60 | 0.31 | 955 | 9550 | 764 | 764 | 1500 | —— | |||
- Parameters in above table refer to motor alone,without any load device.
- Permissible change in rated speed and rated current of the motor is within the range of±5%.

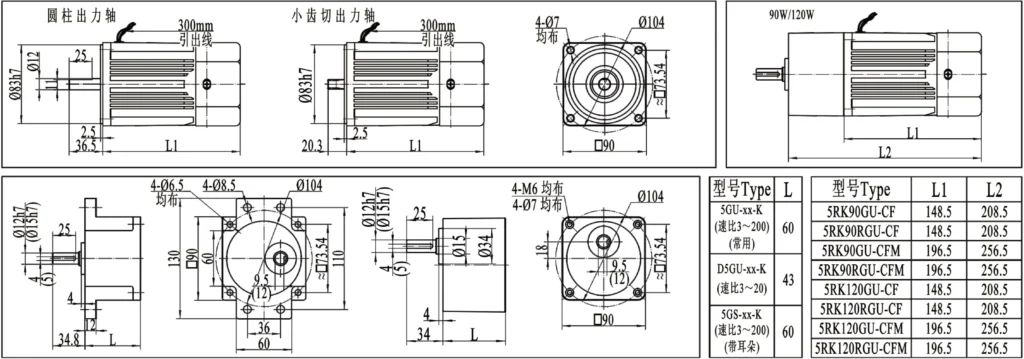

Outline dimension drawing
Allowable load for the gear motor
| Geared-down parameter | Synchronous speed | 500 | 300 | 200 | 150 | 120 | 100 | 75 | 60 | 50 | 45 | 37.5 | 30 | 25 | 20 | 15 | 12.5 | 10 | 8 | 7.5 | 6 | 5 | 3 | |
| Ratio | 3 | 5 | 7.5 | 10 | 12.5 | 15 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | 500 | ||
| Max allowable load | 90W | Kg.cm/N.m | 15.7 1.54 | 26.5 2.6 | 39.4 3.86 | 52.5 5.15 | 65.7 6.44 | 71 6.96 | 94.6 9.28 | 118 11.6 | 141 13.9 | 170 16.7 | 189 18.5 | 200 19.6 | ||||||||||
| 120W | kg.cm/N.m | 21.5 2.11 | 36 3.52 | 54 5.28 | 70 6.88 | 87.57 8.59 | 98 9.6 | 126 12.4 | 148 14.5 | 189 18.5 | 200 19.6 | |||||||||||||
- The speed is based on the synchronous motor speed reduction ratio as a benchmark calculated by dividing the value of.Actual speed will vary the size of the load changes in less than the values shown in2~15%.
- Hope to the table of the reduction ratio is greater than the further reduction,it would be installed between the motor and the reducer reduction ratiio of 10 the middle of the reducer.
- When the load torque exceeds the maximum allowable load torque gear motor,and a locked rotor situation exists,please slow down box at the junction of the output shaft and load torque limit device installed to ensure the normal operation gearbox.
